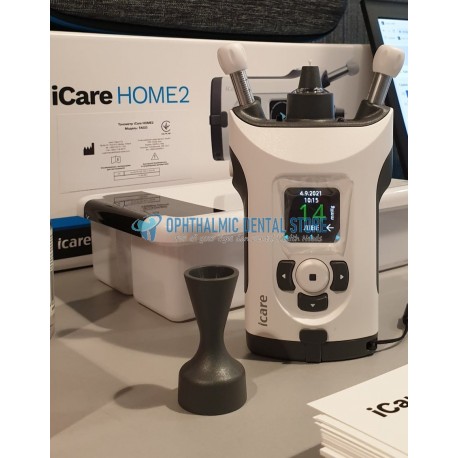

iCare HOME2 Tonometer

Easy and accurate IOP self-measurement

Key features:

- Reliable and accurate
- Easy to deploy and use
- Informative user interface
- Measurements also in supine position
- A new mobile app with IOP graphs for patient use
- Private cloud account for patient use
- Instant data transfer to the clinic

Technical data:

Type : TA023
Dimensions (WxHxL) : 50 mm x 94 mm x 152 mm (supports extended to maximum)
                     2.0” x 3.7” x 6.0” (supports extended to maximum)
Weight : 205 g (without batteries) / 0.45 lbs (without batteries)
         300 g (with 4 x AA batteries) / 0.66 lbs (with 4 x AA batteries)
Power Supply : 4 x 1.5 V, AA, non-rechargeable batteries, alkaline LR6
Measurement range : 7 – 50 mmHg
Accuracy : ±1.2 mmHg (≤ 20 mmHg) and ±2.2 mmHg (> 20 mmHg)
Repeatability : (coefficient of variation) < 8 %
Precision of display : 1 mmHg
Display unit : millimeters of mercury (mmHg)
Bluetooth module : RN4678 Bluetooth 4.2 Dual Mode

System requirements for iCare CLINIC

- Internet connection
- Minimum web browser versions: IE 11, Chrome (v 58),
  Firefox (v 53) and Safari (5.1.7)

Minimum system requirements for iCare PATIENT2

- Android smart phone or tablet with USB OTG support, operating system v 6.0 or newer or iPhone with operating system iOS 12 or newer
- USB OTG C male – C male cable, supplied with the tonometer
- Internet connection
- To verify the required USB OTG support in the smart phone or tablet, use the OTG? application available on Google Play Store or another application providing similar functionality.

Minimum computer requirements for iCare EXPORT

- x86 or x64 1 GHz Pentium processor or equivalent
- 512 MB RAM
- 512 MB of hard disk space (in addition, 4.5 GB if .NET not already installed)
- USB 2.0 connection
- 800 x 600 resolution display with 256 colors
- DirectX 9 compatible graphics card
- .NET Framework 4.6.1 or greater
- Operating System: Windows 7, Windows 8, or Windows 10
- Internet connection
- Using Bluetooth requires a computer with Windows 10 version 1703 or newer and Bluetooth BLE card / chip


Package Includes:

- Intraocular pressure monitor
- Additional sensor housing
- Cables for transferring ophthalmometer data via an Android smartphone or tablet, or computer to a network database. Data is transferred wirelessly via an iOS mobile device.
- Pack of 50 disposable sensors for intraocular pressure. Sterilized and individually packaged.
- Sensor housing for iCare HOME and HOME2 intraocular pressure monitors
- Batteries for iCare HOME2 intraocular pressure monitor (4 pcs)
